Name: Patrik Diethelm QT-wave 2024
Brand: Patrik Diethelm
SKU: 16691
Availability: InStock

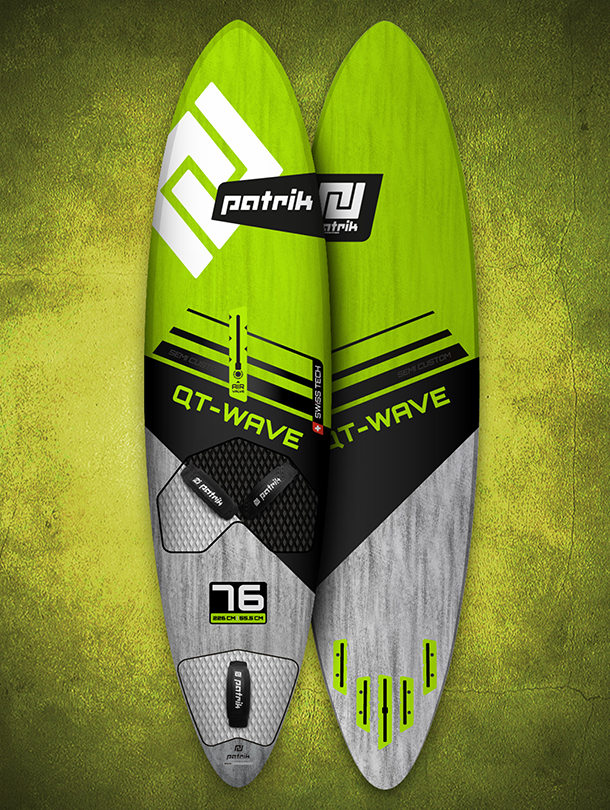

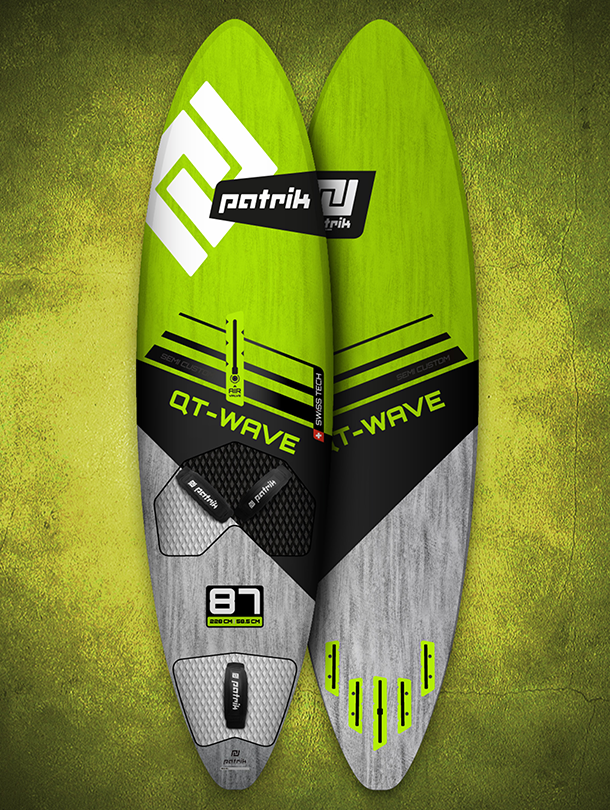

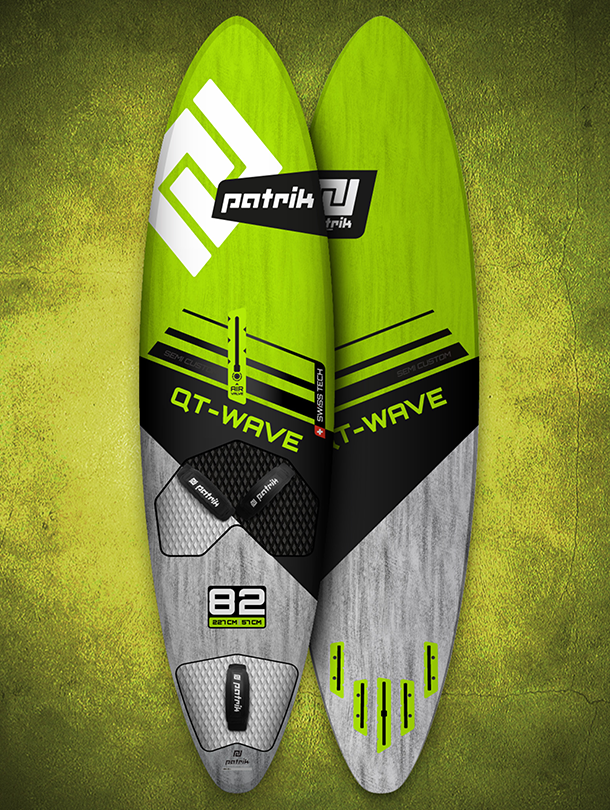

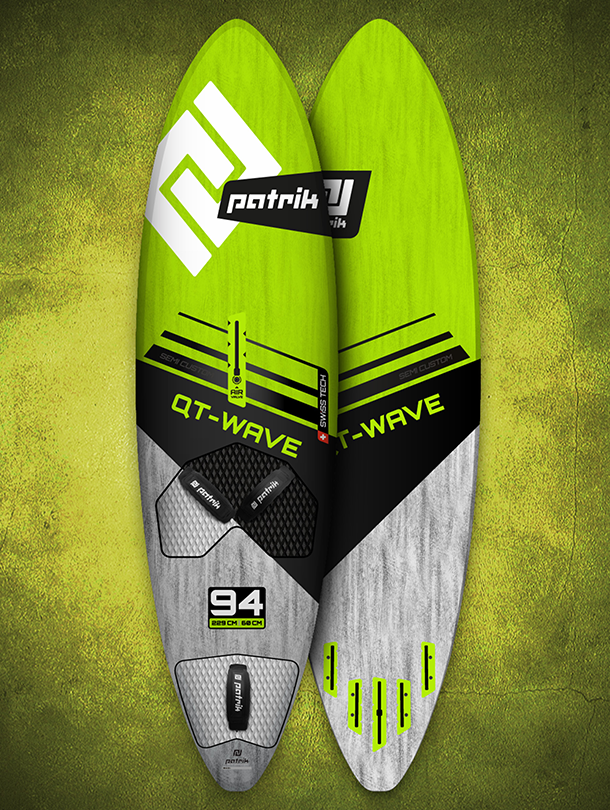

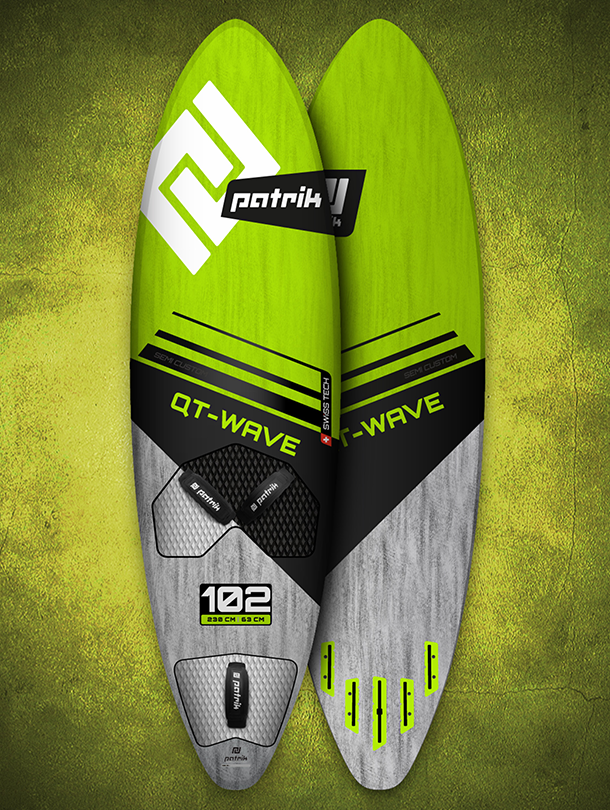

Patrik Diethelm QT-wave 2024

AROUND-THE-GLOBE PERFORMANCE WAVE BOARD WITH MULTIPLE FIN OPTIONS. NEW ROCKERLINE AND MORE VEE FOR AN EVEN BETTER WAVE PERFORMANCE.

OVERVIEW

Different wave spots, different conditions and different styles of riding make it really difficult to develop a high-level production wave board… but our QT-WAVE is the answer for those who want to travel light and play in any kind of wind and wave conditions.

With the 5 fin boxes (1x US, 4x Slot) you can setup the board as Singlefin, Twinser, Trailer, Tri-Fin, Thruster, Quad and even Trailer Quad (5Fin). With all these options you can perfectly adapt the QT-Wave to your style of riding and the type of waves the spot is offering.

SHAPE

Optical aspects & Footpads
With the new graphics influenced by Italian designer Fabio Canella we have created a colourful but still clean board design. The 6mm thick diamond groove grip pad has an extra 6mm soft sponge under-layer which makes it 12mm in total. The special layup uses the hard layer to spread the load onto a wider board surface via the soft bottom layer of the pad. This gives us more impact resistance while keeping a direct feeling under your feet.

Shape & Outline
Balanced and pretty. Shaped by hand. After thousands of boards shaped the experience and precision of our shaper Patrik Diethelm will easily outperform any CNC software. The result is a perfect shape with a beautifully flowing outline. The wider front section gives you enough lift in the nose area to go planing early and to be able to hit the whitewater late. The narrow tail gives you that agressive feeling when moving ther board from rail to rail. Enjoy maximum grip in carved top turns. Chose between carving and throwing spray or sliding and new-school tricks on the wave. This board will never hold you back.

Scoop-Rocker and Bottom Contour
New Single into double concave into vee concept that creates more rocker on the rail line while keeping a moderate rocker in the center. This gives you the best of both worlds. Good accelleration and speed on the straight and more response and a playful radical feeling in the turns. A slight tail kick under your backfoot allows you adapt your turns to the wave any time. Progressive bottom shape with deeper concaves on the smaller sizes for more control. Connect fast sections with ease, throw some big spray… The new QT can do it all.

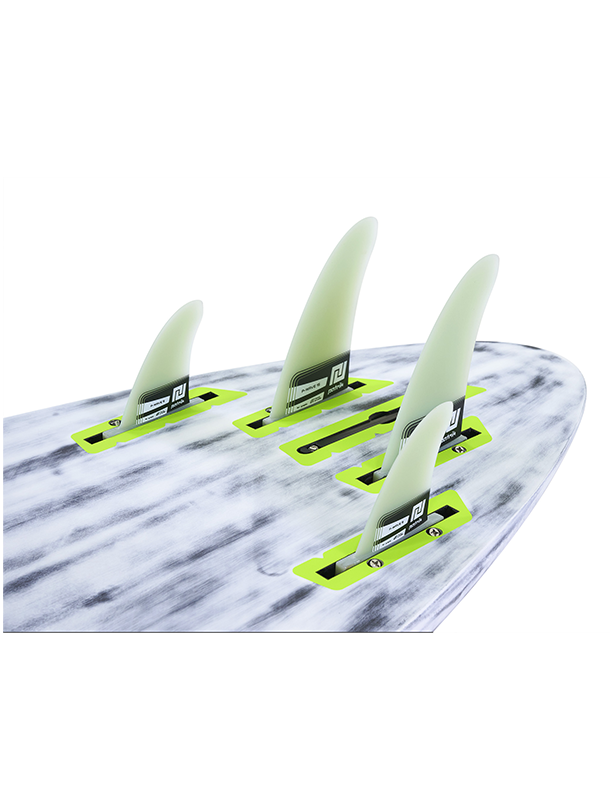

Fins & Fin Boxes
The QT-Wave comes with 4x PATRIK Power wave (PW) fins. Center US 8” box to allow the use of bigger single fins. 4 side slot boxes to save weight.

Inserts
Each insert offers 4-positions and on the front strap has a double plug to be able and change width and angle for different foot size and riding style.

Volume distribution
The balanced thickness under your feet and around the mast track is one of the key points to create a good allround wave board. A light dome deck allows as to keep thinner rails while ‘hiding’ some volume in the center of the board. This trick also improves the stiffness and break resistance of the construction. The much thinner tail area gives you control, grip and manoeuvrability.

Rails / Tucked
The round rails & tuck starting in the nose area make the board feel smooth troughout the turn. Round rails give you control and also more grip. Under the mast track the tucked show a slightly more visible edge which gets a little sharper between the straps and ends up sharp right behind the back strap for early planning acceleration and top speed.

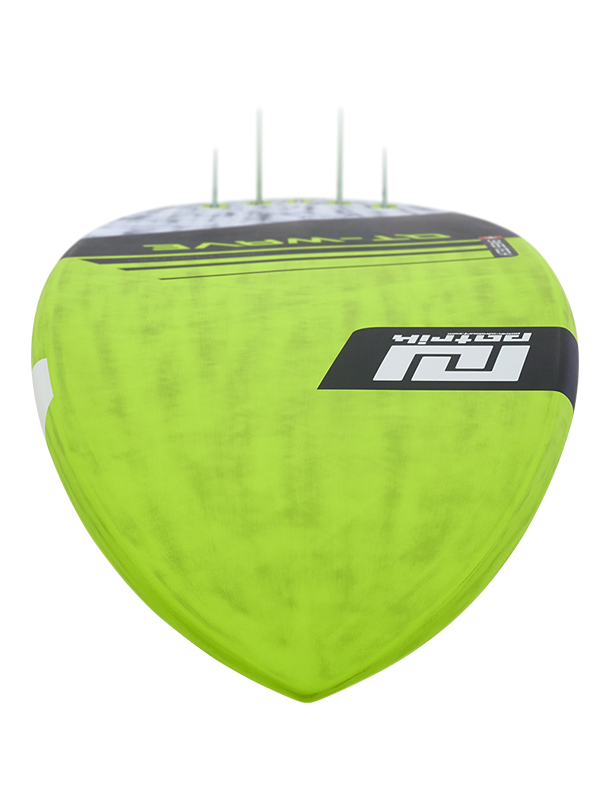

Deck Shape
The smooth balance ov the whole shape is being carried over into all details. The light domed deck is more round at the front foot for a comfortable stand and good grip in the straps when planing and jumping. More flat under the backfoot for a better connection to the wave.

CONSTRUCTION

The topic where opinions split radically. But at the end of day let the advanced riders prove that our construction is built to last. The full carbon/kevlar deck is light and stiff with a good impact resistance. The Biax glass fibres on the bottom give you that controlled extra flex our riders love for the big turns and landings. Important fact: The softer biax glass spreads the load much better into the 3d construction than a full carbon bottom would. This results in better flex, better strength and better overall performance, while saving some money on production costs where it’s not needed. Patrik Diethelms knowlede in composite construction is unmatched in the windsurf industry. This is our way of creating sustainable products that will last you many years when used correctly.

SPECS

	Length	Width	Volume	Tail Width at 300	Nose Width at 2000	Weight (+/-6%)	Strap Options & Insert Holes	Strap Quantity	Fin Box
qt-wave 76	2260	555	76	336	369	TBC	5×4	3	1xUS 8″ +4xSlot
qt-wave 82	2270	570	82	347	380	TBC	5×4	3	1xUS 8″ +4xSlot
qt-wave 87	2280	585	87	353	397	TBC	5×4	3	1xUS 8″ +4xSlot
qt-wave 94	2290	600	94	360	412	TBC	5×4	3	1xUS 8″ +4xSlot
qt-wave 102	2300	630	102	382	443	TBC	5×4	3	1xUS 8″ +4xSlot

RANGE OF USE

		Sailor Type (Weight & Size)			Sailor Skills			Ideal Wind Strength / Sailor Type			Water Conditions
	S	M	L	Entry	Advanced	Pro	Low	Med	High	Flat	Chop	Wave
	less than 70kg / less than 170cm	70-90kg /170-190 cm	more than 90kg / more than 190cm	uphaul, gliding all reaches	waterstart, strap & harness, first jibes	moves, waves, speed	less than 15 knt	15-25 knt	more than 25 knt	flatwater / chop: less than 1m	chop / wind waves: less than 2.5m	wind waves / swell: more than 2.5m
qt-wave 76	X	X				X	S	S/M	L		X	X
qt-wave 82	X	X				X	S/M	M/L	M/L		X	X
qt-wave 87	X	X	X			X	M	M/L	M/L		X	X
qt-wave 94		X	X			X	M/L	M/L	M/L		X	X
qt-wave 102		X	X			X	M/L	M/L	L		X	X

	Best Sail Size	Sail Range	PATRIK Fins incl. with the board	Fin range Quad	Fin range Thruster	Fin range Twinzer	Fin range Single	Boardbag size
qt-wave 76	3.8-5.2	3.3-5.6	2xPW145 + 2xPW80	2×140-160 & 2×80-90	1×180-210 & 2×80-100	2×155-170	200-240	‌S
qt-wave 82	4.2-5.4	4.0-5.8	2xPW150 + 2xPW90	2×145-165 & 2×80-100	1×190-220 & 2×80-110	2×160-175	210-250	‌S
qt-wave 87	4.4-5.6	4.2-6.0	2xPW155 + 2xPW90	2×150-170 & 2×80-100	1×200-230 & 2×80-110	2×165-180	220-260	‌M
qt-wave 94	4.8-5.8	4.4-6.2	2xPW160 + 2xPW90	2×155-175 & 2×80-110	1×210-240 & 2×80-110	2×170-185	230-270	‌M
qt-wave 102	5.0-6.0	4.6-6.4	2xPW165 + 2xPW100	2×160-180 & 2×80-110	1×220-250 & 2×90-120	2×175-185	240-280	‌M

Litraggio

102

Brand

Patrik Diethelm

-15%

Click to enlarge

Il prezzo originale era: €2,799.00.Il prezzo attuale è: €2,379.15.

Svuota

COD: N/A Categorie: Tavole, Tavole Patrik Diethelm Tag: Patrik Diethelm, tavola Wave

Descrizione

	Length	Width	Volume	Tail Width at 300	Nose Width at 2000	Weight (+/-6%)	Strap Options & Insert Holes	Strap Quantity	Fin Box
qt-wave 76	2260	555	76	336	369	TBC	5×4	3	1xUS 8″ +4xSlot
qt-wave 82	2270	570	82	347	380	TBC	5×4	3	1xUS 8″ +4xSlot
qt-wave 87	2280	585	87	353	397	TBC	5×4	3	1xUS 8″ +4xSlot
qt-wave 94	2290	600	94	360	412	TBC	5×4	3	1xUS 8″ +4xSlot
qt-wave 102	2300	630	102	382	443	TBC	5×4	3	1xUS 8″ +4xSlot

		Sailor Type (Weight & Size)			Sailor Skills			Ideal Wind Strength / Sailor Type			Water Conditions
	S	M	L	Entry	Advanced	Pro	Low	Med	High	Flat	Chop	Wave
	less than 70kg / less than 170cm	70-90kg /170-190 cm	more than 90kg / more than 190cm	uphaul, gliding all reaches	waterstart, strap & harness, first jibes	moves, waves, speed	less than 15 knt	15-25 knt	more than 25 knt	flatwater / chop: less than 1m	chop / wind waves: less than 2.5m	wind waves / swell: more than 2.5m
qt-wave 76	X	X				X	S	S/M	L		X	X
qt-wave 82	X	X				X	S/M	M/L	M/L		X	X
qt-wave 87	X	X	X			X	M	M/L	M/L		X	X
qt-wave 94		X	X			X	M/L	M/L	M/L		X	X
qt-wave 102		X	X			X	M/L	M/L	L		X	X

	Best Sail Size	Sail Range	PATRIK Fins incl. with the board	Fin range Quad	Fin range Thruster	Fin range Twinzer	Fin range Single	Boardbag size
qt-wave 76	3.8-5.2	3.3-5.6	2xPW145 + 2xPW80	2×140-160 & 2×80-90	1×180-210 & 2×80-100	2×155-170	200-240	‌S
qt-wave 82	4.2-5.4	4.0-5.8	2xPW150 + 2xPW90	2×145-165 & 2×80-100	1×190-220 & 2×80-110	2×160-175	210-250	‌S
qt-wave 87	4.4-5.6	4.2-6.0	2xPW155 + 2xPW90	2×150-170 & 2×80-100	1×200-230 & 2×80-110	2×165-180	220-260	‌M
qt-wave 94	4.8-5.8	4.4-6.2	2xPW160 + 2xPW90	2×155-175 & 2×80-110	1×210-240 & 2×80-110	2×170-185	230-270	‌M
qt-wave 102	5.0-6.0	4.6-6.4	2xPW165 + 2xPW100	2×160-180 & 2×80-110	1×220-250 & 2×90-120	2×175-185	240-280	‌M

Informazioni aggiuntive

Litraggio	76 , 82 , 87 , 94 , 102
Brand	Patrik Diethelm
